Carbon Steel Hydraulic Quick Connect Couplings KJ Close Type Chrome Three Or Six

Name: Carbon Steel Hydraulic Quick Connect Couplings KJ Close Type Chrome Three Or Six
Brand: SONGQIAO
Price: 1 USD

Brand Name : SONGQIAO

Model Number : KJ

Place of Origin : Ningbo, China(Mainland)

Supply Ability : 50,000 pcs/day, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement

Packaging Details : standard exporting package or as per customers' requests

MOQ : negotiable

Price : negotiable

Standard : Compatible with Chinese standard

WP : Working pressure to 4565 psi (315 bar)

Material : Carbon Steel

Size : M16*1.5-M68*2

Thread : Metric

Connection : Locking balls

Contact Now

KJ Chinese Type Hydraulic Couplings in Carbon Steel, Chrome Three or Six

Descripton:

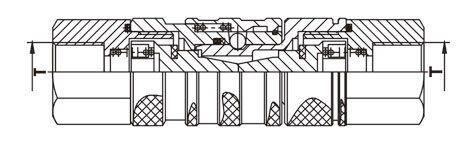

KJ close type hydraulic quick coupling(steel)
Application and Features: These coupling be adequate for dielectric situation with engine oil, water and air; nominal pressure 32Mpa,medium temperature-20℃ to +120℃.

Path(D)	Working pressure(MPa)	Screw thread(T)
6.3	31.5	M16*1.5	ZG1/8
10	31.5	M18*1.5	ZG1/4
12.5	31.5	M27*1.5	ZG3/8
20	25	M30*1.5	ZG1/2
25	25	M33*2	ZG3/4
31.5	20	M52*2	ZG1
40	16	M60*2	ZG1-1/4
50	16	M68*2	ZG1-1/2

Carbon Steel Hydraulic Quick Connect Couplings KJ Close Type Chrome Three Or Six

Product Tags:

Carbon Steel Hydraulic Quick Connect Couplings

Hydraulic Quick Connect Couplings KJ Close Type
